Cisco  SPA122 - Gateway Cisco SPA122 ATA com Roteador (SPA122-BR)

Estoque sob consulta
R$ 441,00

Sem estoque

Produto atualmente com estoque sob consulta!
Preço apenas de referência, não válido para confirmar pedidos.
Entre em contato para informações de prazo e preço.

Gostaria de cotar um substituto? Analise os similares nesta página ou clique aqui para ser avisado quando estiver disponível.
Indique o produto
Empresas de SP com Inscrição Estadual
  • R$ 360,00 Com desconto!
    no Boleto antecipado
Empresas do S/SE (exceto ES/SP), com Inscrição Estadual
  • R$ 288,00 Com desconto!
    no Boleto antecipado
Empresas do ES, N/NE/CO com Inscrição Estadual
  • R$ 360,00 Com desconto!
    no Boleto antecipado
Pessoas físicas ou empresas sem Inscrição Estadual em todo o Brasil
  • R$ 441,00 Com desconto!
    no Boleto antecipado
Empresas de SP com Inscrição Estadual
Compre agora pelo site em uma das formas abaixo
Boleto bancário antecipado
com desconto
R$ 360,00
Empresas do S/SE (exceto ES/SP), com Inscrição Estadual
Compre agora pelo site em uma das formas abaixo
Boleto bancário antecipado
com desconto
R$ 288,00
Empresas do ES, N/NE/CO com Inscrição Estadual
Compre agora pelo site em uma das formas abaixo
Boleto bancário antecipado
com desconto
R$ 360,00
Pessoas físicas ou empresas sem Inscrição Estadual em todo o Brasil
Compre agora pelo site em uma das formas abaixo
Boleto bancário antecipado
com desconto
R$ 441,00
Válido para todo o Brasil
Compre agora pelo site em uma das formas abaixo
Boleto bancário antecipado
com desconto
R$ 360,00
Produtos similares a Gateway Cisco SPA122 em estoque
Aproveite para comprar também
Opcionais para Gateway Cisco SPA122
Prazo de entrega e frete para Gateway Cisco SPA122

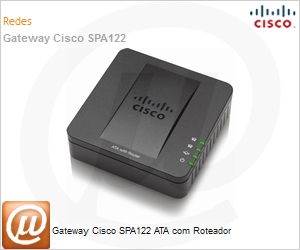

Gateway Cisco SPA122 (SPA122)

Gateway Cisco SPA122

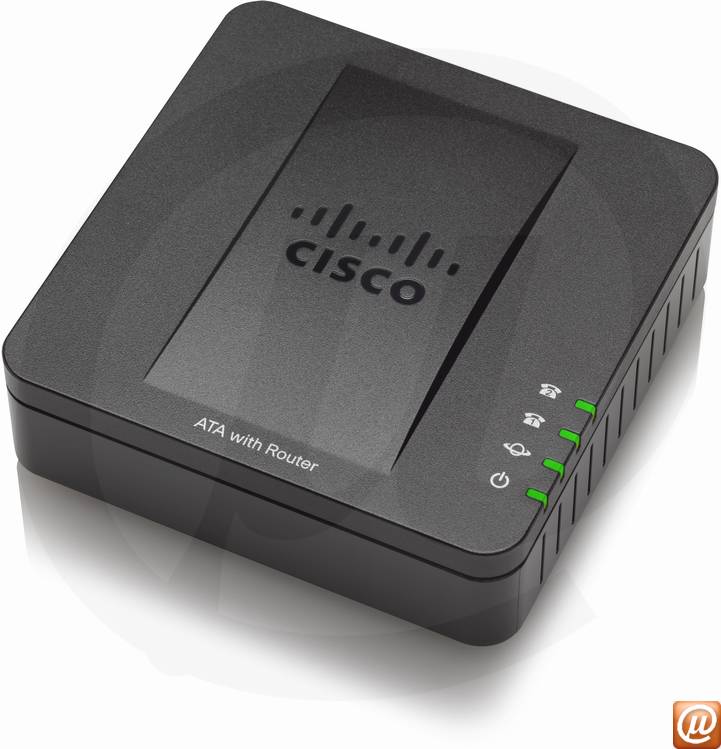

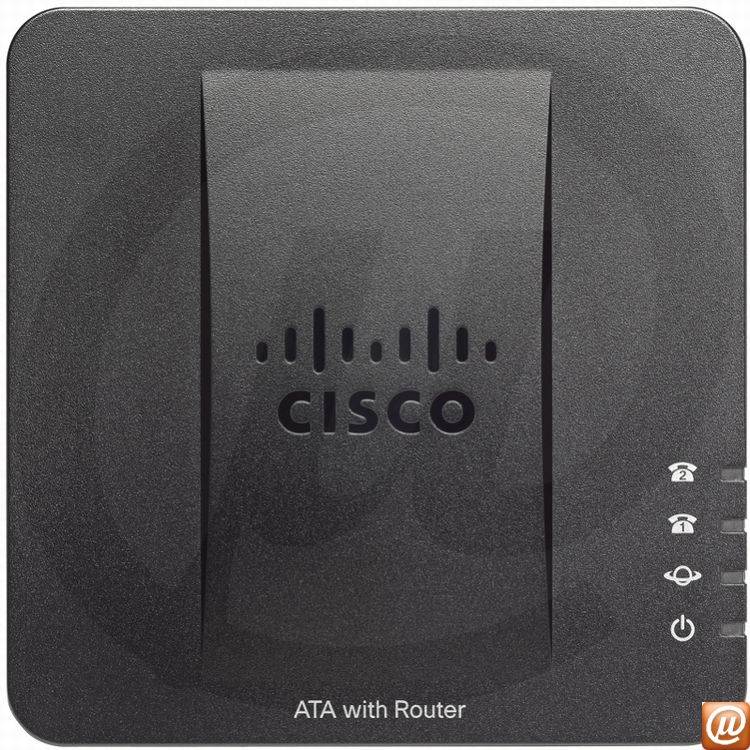

The Cisco SPA122 ATA with Router:
  • Enables high-quality VoIP service with a comprehensive feature set through a broadband Internet connection
  • Provides high-quality, clear-sounding voice, using advanced voice quality-of-service (QoS) capabilities and the industry-leading voice Session Initiation Protocol (SIP) stack
  • Supports reliable faxing with simultaneous voice and data use
  • Includes two standard telephone ports, each with an independent phone number, for use with fax machines or analog phone devices, and one fast Ethernet WAN port, and one fast Ethernet LAN port for local home or business network connection
  • Is compatible with all industry voice and data standards and common telephone Características such as caller ID, call waiting, and voicemail
  • Includes a simple-to-use web-based configuration utility for easy deployment

    *Note: Many specifications are programmable within a defined range or list of options. Please see the Cisco SPA100 Series Administration Guide for details. The configuration profile is uploaded to the Cisco SPA122 at the time of provisioning.
    Data networking

    MAC address (IEEE 802.3)
    IPv4 (RFC 791) upgradeable to IPv6 (RFC 1883)
    Address Resolution Protocol (ARP)
    Domain Name System (DNS) A record (RFC 1706) and SRV record (RFC 2782)
    Dynamic Host Configuration Protocol (DHCP) server and client (RFC 2131)
    DHCP client reservation
    DHCP Options 159 and 160
    Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516)
    Internet Control Message Protocol (ICMP) (RFC 792)
    TCP (RFC 793)
    User Datagram Protocol (UDP) (RFC 768)
    Real Time Protocol (RTP) (RFC 1889) (RFC 1890)
    Real Time Control Protocol (RTCP) (RFC 1889)
    Differentiated Services (DiffServ) (RFC 2475) and type of service (ToS) (RFC 791/1349)
    VLAN tagging (IEEE 802.1p)
    Simple Network Time Protocol (SNTP) (RFC 2030)
    Upload data rate limiting: static and automatic
    QoS voice packet prioritization over other packet types
    MAC address cloning
    Port forwarding
    SIP channels support both UDP and TCP transport
    VPN pass-through with IP Security encapsulating security payload (IPsec ESP), Point-to-Point Tunneling Protocol (PPTP), and Layer 2 Tunneling Protocol (L2TP)
    Voice gateway

    SIPv2 (RFC 3261, 3262, 3263, and 3264)
    SIP proxy redundancy: dynamic through use of DNS SRV A records
    Reregistration with primary SIP proxy server
    SIP support in Network Address Translation (NAT) networks (including Serial Tunnel [STUN])
    Highly secure (encrypted) calling using Secure RTP (SRTP)
    Codec name assignment
    G.711 (A-law and ?-law)
    G.726 (32 kbps)
    G.729 A
    Dynamic payload
    Adjustable audio frames per packet
    Dual-tone multifrequency (DTMF): in-band and out-of-band (RFC 2833) (SIP information)
    Voice Características

    QoS (Ethernet port upstream bandwidth control)
    Independent configurable dial plans with interdigit timers and IP dialing (1 per port)
    Call progress tone generation
    Jitter buffer: Adaptive
    Frame loss concealment
    Full-duplex audio
    Echo cancellation (G.165 and G.168)
    Voice activity detection (VAD)
    Silence suppression
    Comfort noise generation (CNG)
    Attenuation and gain adjustments
    Flash hook timer
    Message waiting indicator (MWI) tones
    Visual messaging waiting indicator (VMWI) using frequency shift keying (FSK)
    Polarity control
    Hook flash event signaling
    Caller ID generation (name and number): Bellcore, DTMF, and European Telecommunications Standards Institute (ETSI)
    Streaming audio server: Up to 10 sessions
    Music on hold
    Call waiting, call waiting and caller ID
    Caller ID with name and number
    Caller ID blocking
    Selective and anonymous call rejection
    Call forwarding: No answer, busy, and all
    Do not disturb
    Call transfer, call return, and call back on busy
    Three-way conference calling with local mixing
    Per-call authentication and associated routing
    Call blocking with toll restriction
    Distinctive ringing: Calling and called number
    Off-hook warning tone
    Advanced inbound and outbound call routing
    Hotline and warmline calling
    Long silence (configurable time setting) silence threshold
    Disconnect tone (for example, reorder tone)
    Configurable ring frequency
    Ring validation time setting
    Tip and ring voltage adjustment setting
    Ring indication delay setting

    Fax capability

    Fax tone detection pass-through
    Fax pass-through using G.711
    Real-time fax over IP using T.38 fax relay (T.38 support is dependent on fax machine and network and transport resilience)


    Password-protected system reset to factory default
    Password-protected administrator and user access authority
    Provisioning, configuration, and authentication
    HTTPS with factory-installed client certificate
    HTTP digest: Encrypted authentication using MD5 (RFC 1321)
    Up to 256-bit Advanced Encryption Standard (AES) encryption
    SIP Transport Layer Security (TLS)

    Provisioning, administration, and maintenance

    Web browser administration and configuration using integral web server
    Telephone keypad configuration with interactive voice prompts
    Automated provisioning and upgrade using HTTPS, HTTP, and Trivial File Transfer Protocol (TFTP)
    Asynchronous notification of upgrade availability using Notify
    Nonintrusive, in-service upgrades
    Report generation and event logging
    Statistics in Bye message
    Debug and syslog server records: Per-line configurable web browser
    Ping and traceroute diagnostics
    Configuration management: Backup and restore
    Support for Bonjour

    Physical interfaces

    1 WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3)
    1 LAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3)
    2 RJ-11 FXS phone ports for analog circuit telephone device (tip and ring)
    Reset button

    Subscriber line interface circuit (SLIC)

    Ring voltage: 40-90 Vpk configurable
    Ring frequency: 20-25 Hz
    Ring waveform: Trapezoidal
    Maximum ringer load: 5 ringer equivalence numbers (RENs)
    On-hook voltage (tip and ring): -46 to -56V
    Off-hook current: 18-25 mA
    Terminating impedance: 600 ohm resistive or 270 ohm + 750 ohm
    150 nF complex impedance
    Frequency response: 300-3400 Hz
    Return loss (600 ohm, 300-3400 Hz): up to 20 dB
    Insertion loss (1 Vrms at 1 kHz): 3-4 dB
    Total harmonic distortion (THD) (350 mV peak at 300 Hz): up to 3%
    Idle channel noise: 72 dB (typical)
    Longitudinal balance: 55 dB (typical)
    Off-hook threshold (line seizure): Rdc < 1000 ohm
    On-hook threshold (line release): Rdc >10000 ohm
    Rdc DC supervisory range: Rdc > 450 ohm

    Regulatory compliance

    FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, Restriction of Hazardous Substances (RoHS), and UL

    Power supply

    DC input voltage: 5V DC at 2.0A maximum
    Power consumption: 5W
    Switching type (100-240V) automatic
    Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8m cord

    Indicator lights and LEDs

    Phone 1, phone 2, Internet, and power


    Quick Start Guide
    Administration Guide (available online)
    Provisioning Guide (available online)

    Dimensions (W x H x D)

    3.98 x 3.98 x 1.10 in. (101 x 101 x 28 mm)

    Unit weight

    5.40 oz (153g)

    Operating temperature

    32 to 113ºF (0 to 45ºC)

    Storage temperature

    -77 to 158ºF (-25 to 70ºC)

    Operating humidity

    10 to 90% noncondensing

    Storage humidity

    10 to 90% noncondensing

    Package Contents

    Cisco SPA122 ATA with Router
    5V/2A power adapter
    6-ft (1.83m) Ethernet cable
    Quick Start Guide
    CD with documentation, including license and warranty

    Product Warranty

    1-Ano limited hardware warranty with return-to-factory replacement and 90-day limited software warranty

    Garantia: 90 dias
